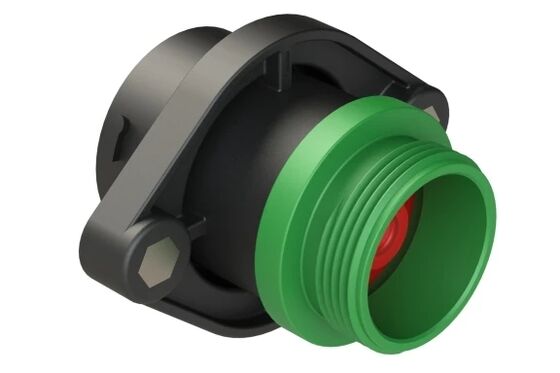

IP68 IP69K Ingress Protected Amphenol AHDP02-24-07SN-STA Female Receptacle Insulated Housing With Full PCB Pad Drawing Files
| Menşe yeri | Amerika |
|---|---|
| Marka adı | Amphenol |
| Sertifika | ROHS |
| Model numarası | AHDP02-24-07SN-STA |
| Min sipariş miktarı | 100 |
| Fiyat | 10USD |
| Ambalaj bilgileri | Bant ve Reel (TR) |
| Teslim süresi | 2~3 hafta |
| Ödeme koşulları | T/T |
| Yetenek temini | 10000 |
Ürün ayrıntıları
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
| Model | |
|---|---|
| AHDP02-24-07SN-STA | |
| AHDP02-24-07PN-STACL22 | |
| AHDP02-24-07PN-STA |
Ürün Açıklaması
IP68 IP69K Ingress Protected Amphenol AHDP02-24-07SN-STA Female Receptacle Insulated Housing With Full PCB Pad Drawing Files
Description
The AHDP02-24-07SN-STA is an Amphenol automotive female receptacle connector with IP68/IP69K heavy-duty ingress protection under mated status across full operating temperature range from -55°C to 125°C. It features stable electrical performance, superior waterproof & dustproof capability and consistent contact conductivity, which make it ideal for heavy-duty automotive wiring harness and PCB assembly applications. This 7-position connector adopts #12 specification contact diameter, rated for 80A at 40°C and 250V working voltage, compatible with wire gauge ranging from 2 to 10. The AHDP02-24-07SN-STA connector is available in standard bulk packaging.
Features
7 Positions Automotive Female Receptacle Connector, #12 Contact Diameter
IP68 / IP69K Heavy-Duty Ingress Protection When Mated
Rated Current: 80A @40°C, Rated Voltage: 250V
Wide Operating Temperature Range from -55°C to +125°C, applicable for wire gauge 2~10
Totally Lead-Free; RoHS Compliant
Standard Bulk Packing
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Applications
Charger
Voltage Adapter
Switching Power Supply
Graphic Card
Precision Voltage Reference
| Category | Automotive / Female Receptacle Connector |
|---|---|
| Mfr | Amphenol |
| Product Status | Active |
| Voltage - Output (Max) | 250 V |
| Current - Output | 80 A @40°C |
| Operating Temperature | -55°C ~ +125°C |
| Mounting Type | Board Mount |
| Package / Case | Bulk Pack |
| Number of Positions | 7 Positions |
| Gender | Female |
| Contact Diameter | #12 |
| Mated IP Rating | IP68 / IP69K |
| Compatible Wire Gauge | 2 ~ 10 |
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
